Latest generation mechanical suction road sweeper — 4 m³ hopper, 25 km/h

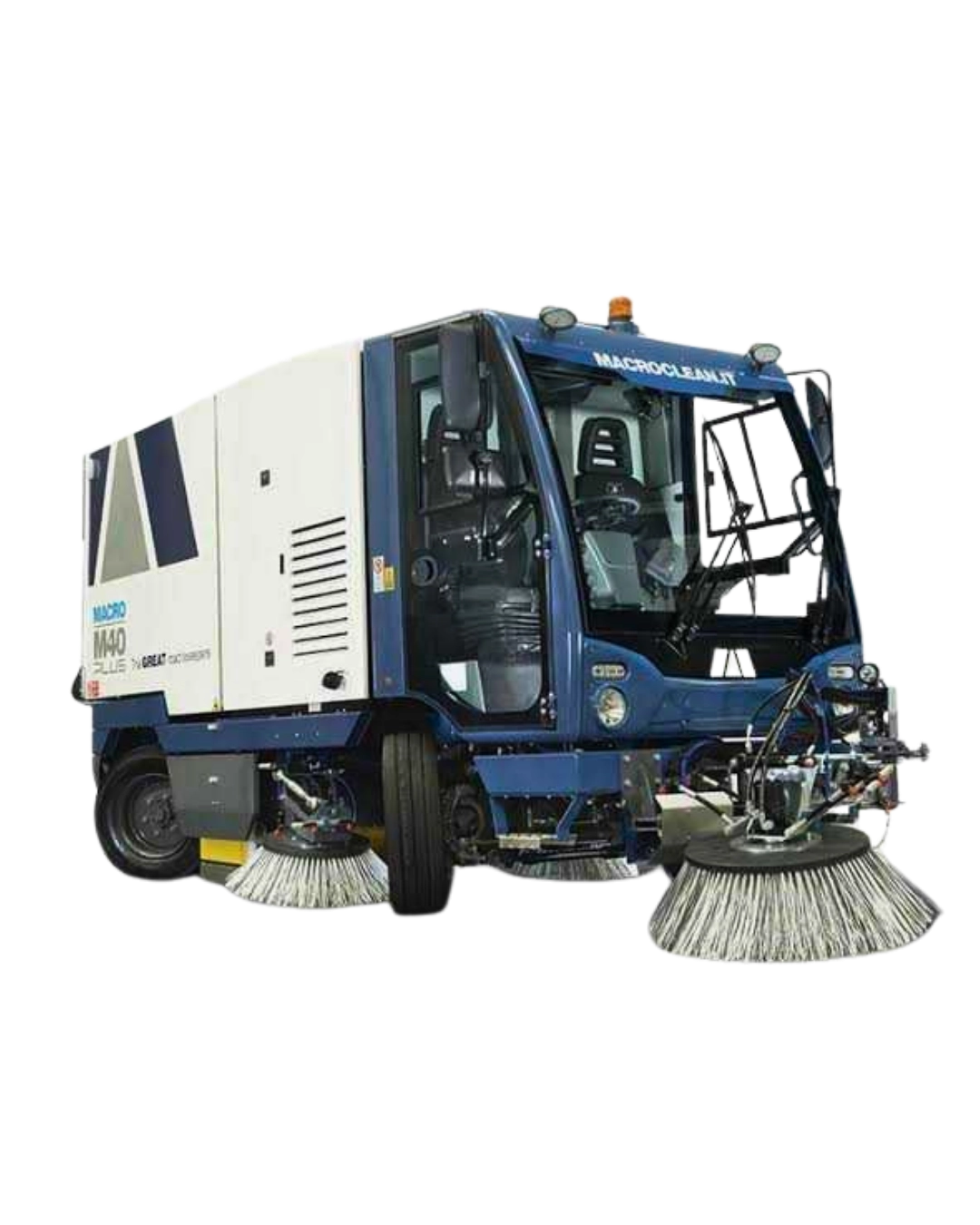

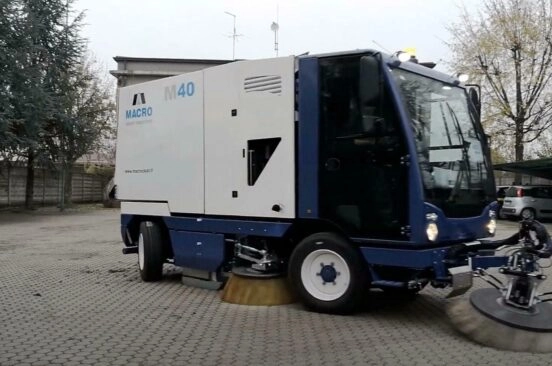

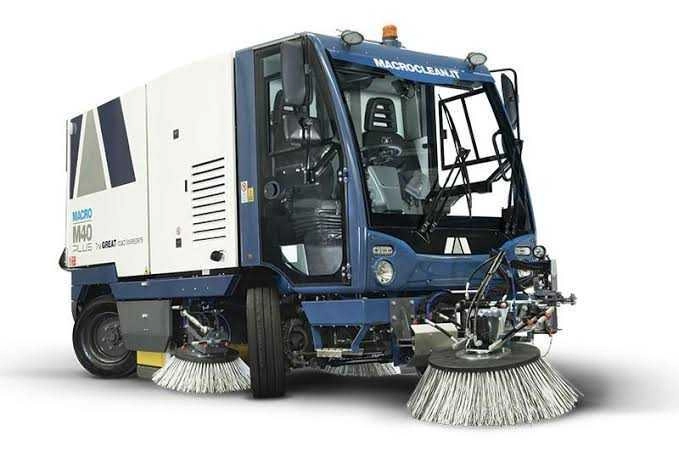

The ASC MACRO M40 is the latest generation mechanical suction road sweeper. Its solid structure and filtered suction mechanical sweeping system make it suitable for all types of cleaning in very dusty facilities. Specifically designed for use in aluminium, cement, mining and port applications, the 4 m³ hopper is perfect for industrial plants where compact dimensions and great cleaning efficiency are required.
An EASY START package is standard on the machine. By pressing the EASY START button, it automatically activates all the machine functions, simplifying operation and greatly reducing operator training time.
EASY START, four wheel steering and pressurised cabin
The four wheel steering system has been carefully engineered to achieve maximum productivity. Thanks to the four wheel steering, you get a clean track free of dirt lines even when making very tight turns.

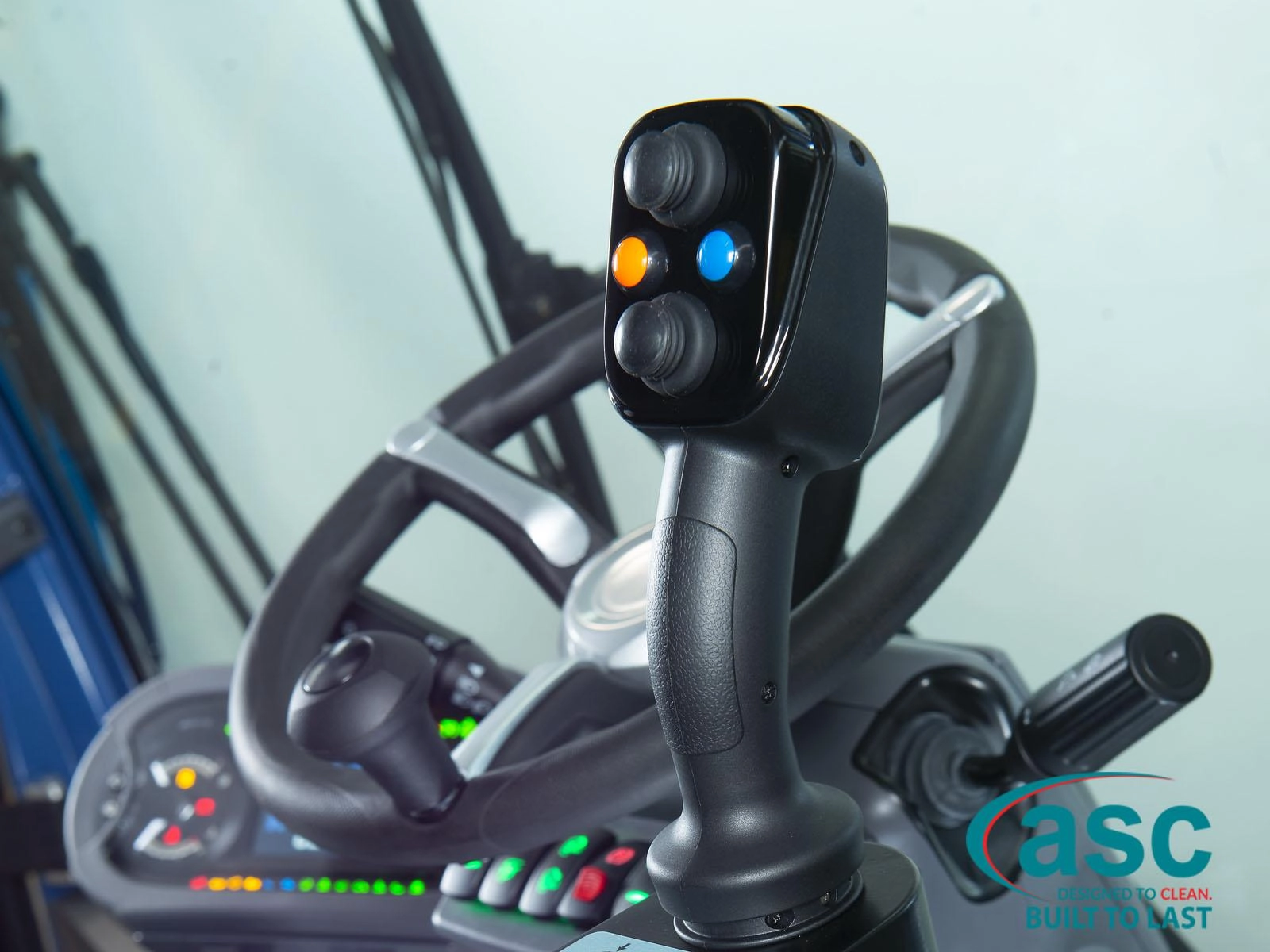

The cabin of the M40 is state of the art — comfortable and spacious, pressurised and carefully insulated from outside temperature, noise, vibration and dust, making long shifts less tiring. All controls are easily accessible from the driver’s position.
Key features
- EASY START — single button activates all machine functions, greatly reduces operator training time
- Four wheel steering — engineered for maximum productivity, clean track free of dirt lines even in tight turns
- Pressurised, insulated cabin — comfortable in all outside temperatures, noise, vibration and dust
- 4 m³ hopper — designed for industrial plants requiring compact dimensions and high cleaning efficiency
- Filtered suction mechanical sweeping system — suitable for very dusty facilities
- Solid structure built for aluminium, cement, mining and port applications
- Compact dimensions with high cleaning efficiency
Main options
- Adjustable front brush — fully adjustable third front brush, sweeps 180° left and right side
- High dump capacity — dumping at any height between 1.05 and 2.1 m
- Rear vacuum hose — 6 m length, 140 mm diameter, high pressure washing system (140–200 bar) with spray gun and 12 m hose reel
- Side brush dust suppression skirts — for dry dust-free sweeping
Warranty
Every ASC MACRO M40 comes backed by the 4 year ASC Advantage Plus warranty on parts and labour.
ASC Satisfaction Guarantee
The ASC MACRO M40 comes backed by the ASC 100% Satisfaction Guarantee.
