High dump sweeper performance in a compact, high maneuverability machine

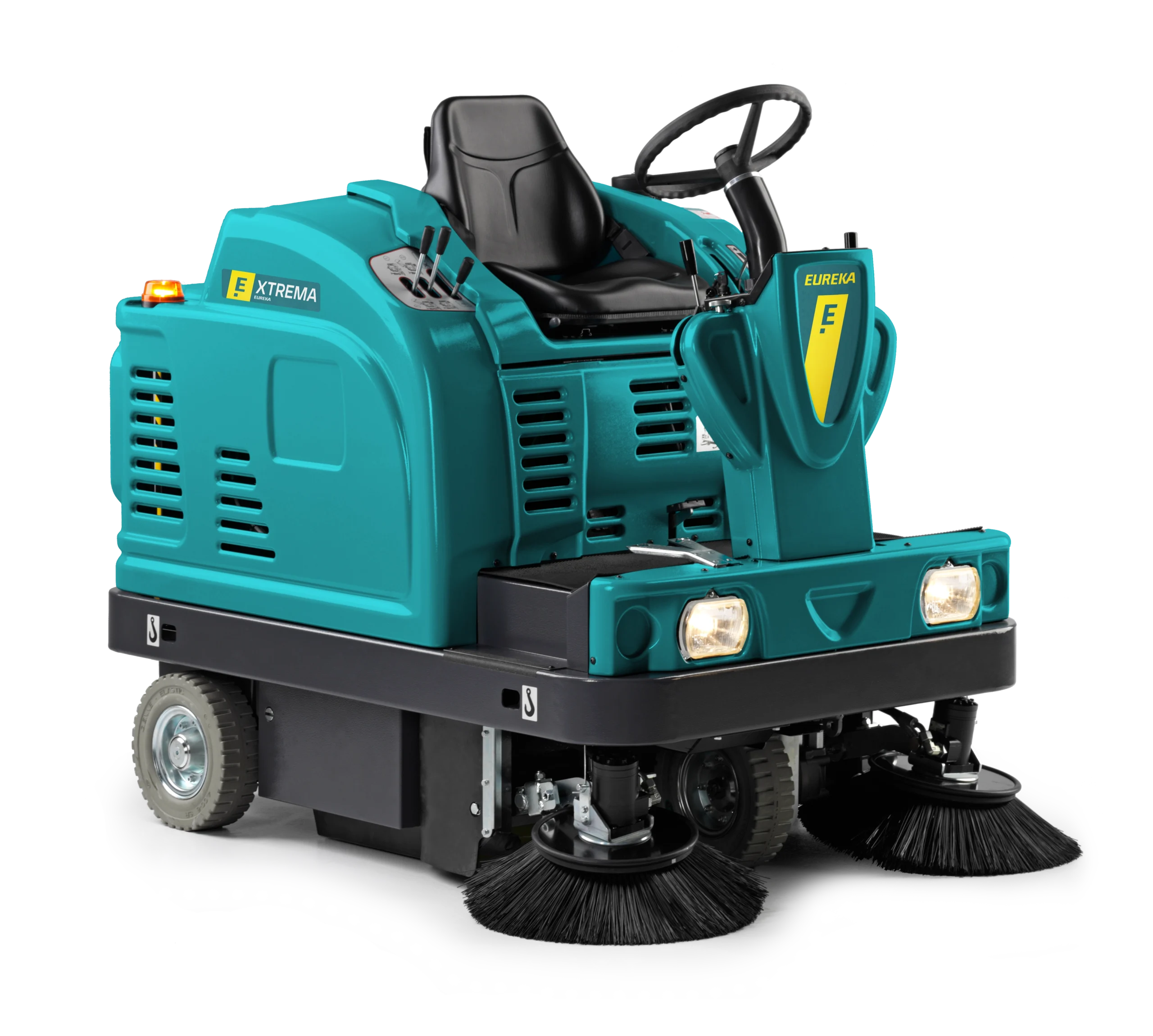

The ASC Eureka M5 is a compact industrial ride on sweeper with a 1,400 mm cleaning path and a top speed of 9 km/h. With an hourly performance of up to 11,200 m²/h (EB) or 11,600 m²/h (HDK), the M5 is highly productive in both congested and large areas, and on steep gradients of up to 20%.
Available in two versions: the EB (battery powered) is ideal for both exterior and interior spaces with zero emissions, and the HDK (Kubota diesel engine) delivers unbeatable speed and sweeping quality with traction, hopper lifting, brushes and fan all hydraulically controlled.
High dump, high visibility, high output

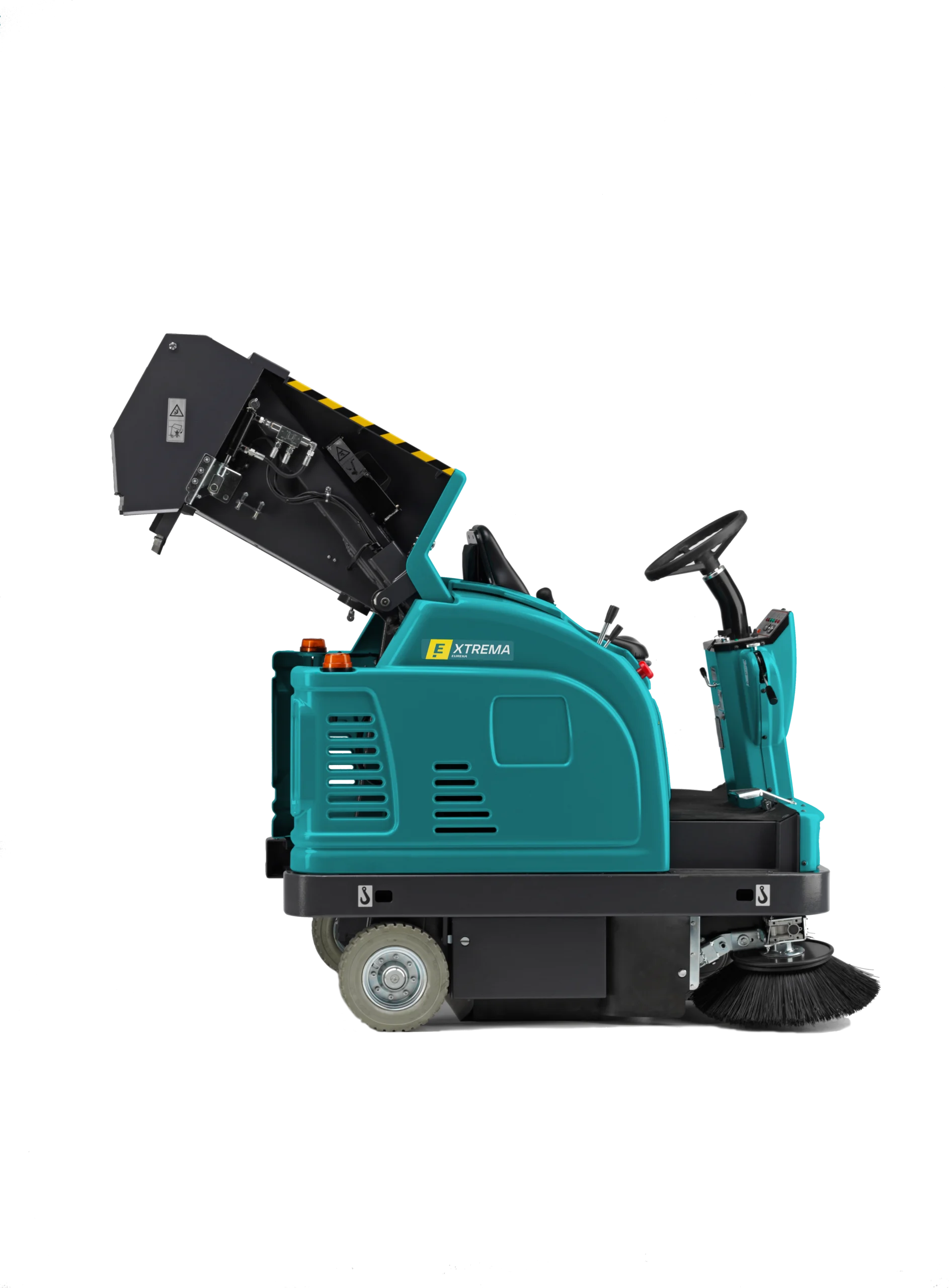

The debris container features a multilevel high dump system fitted with a hydraulically controlled door. Located at the rear of the machine, it has a 150 L capacity and can be hydraulically raised to a maximum height of 1,350 mm, enabling direct deposit into a skip without manual lifting.

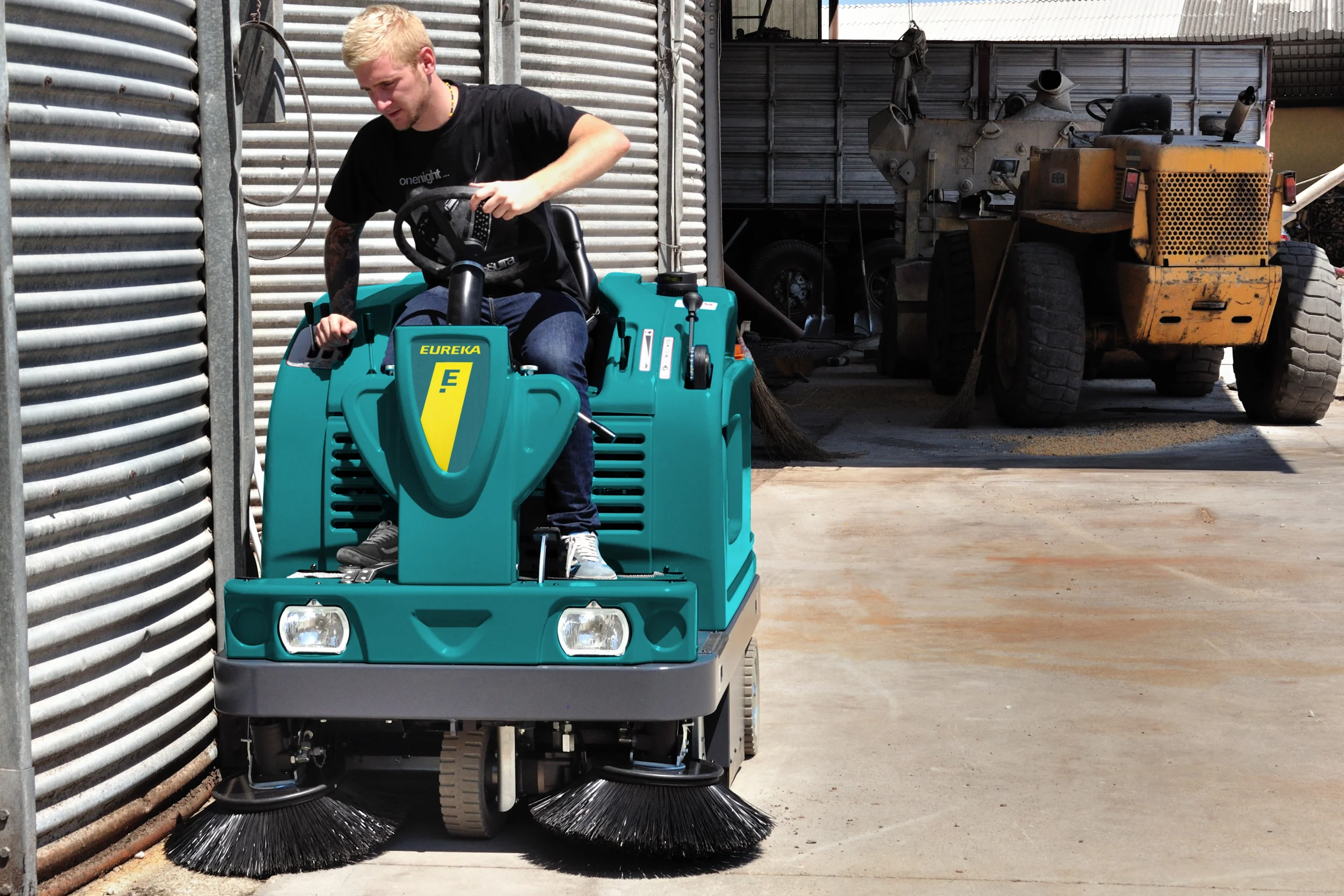

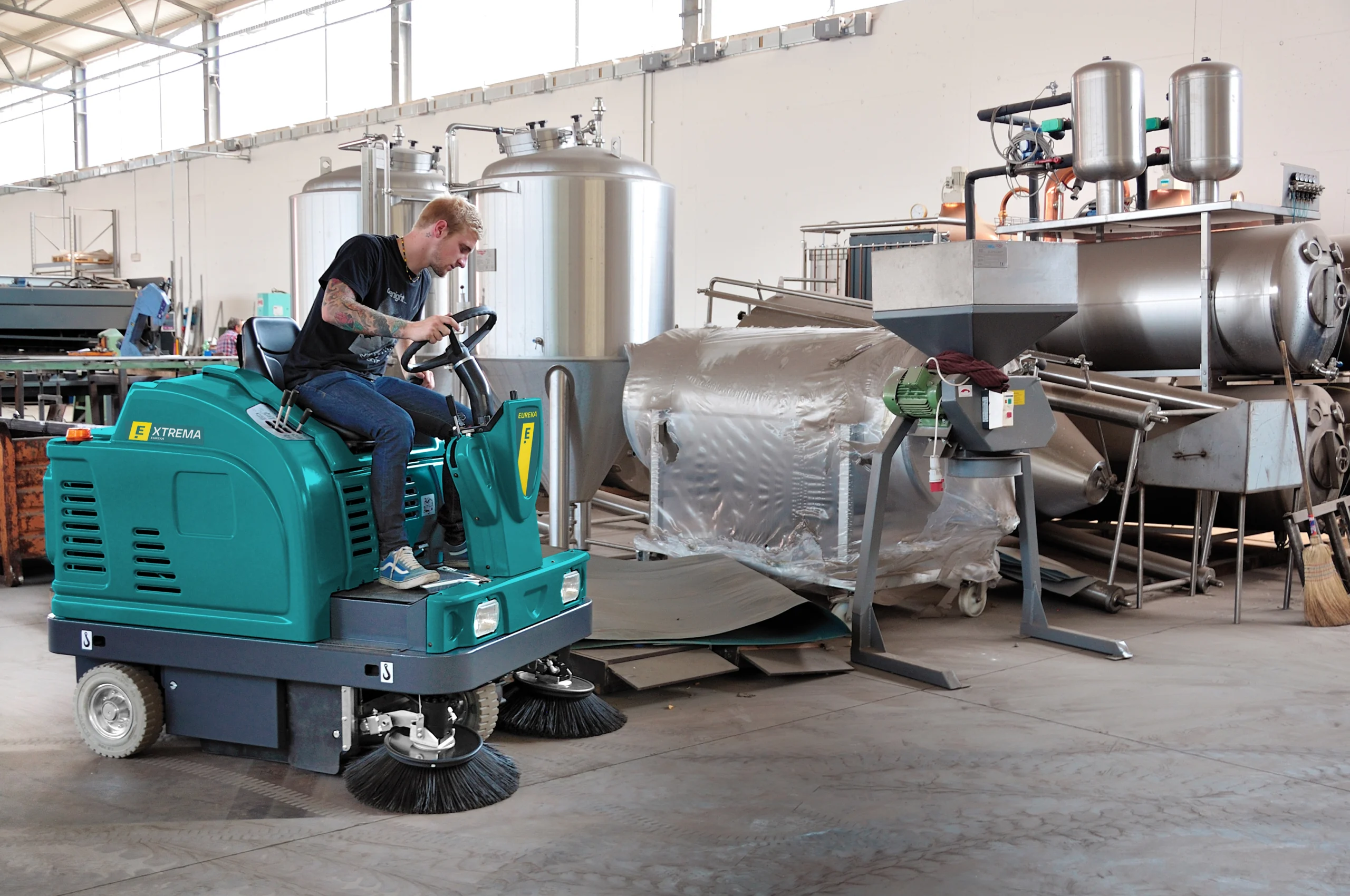

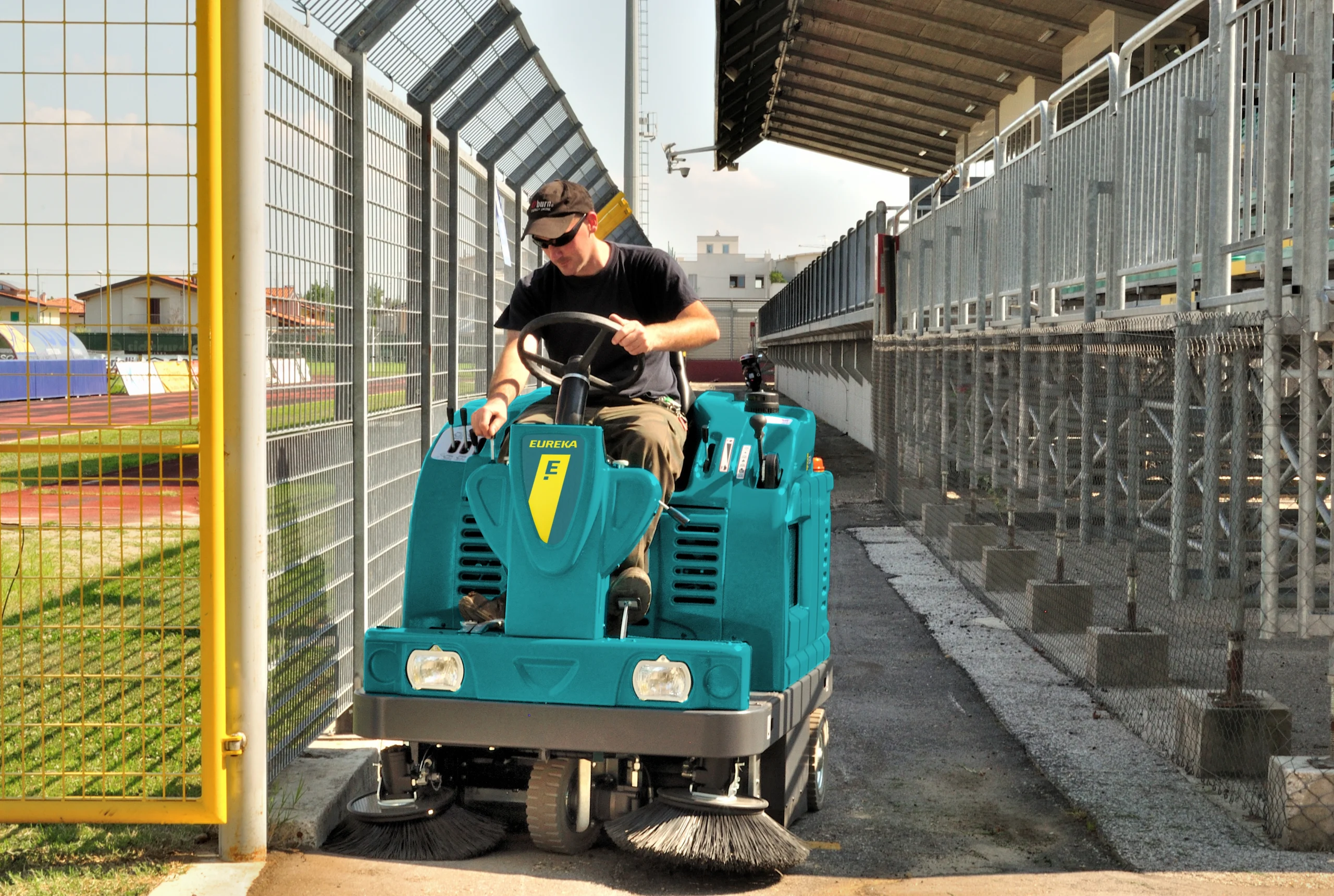

Despite its output, the M5 has a compact turning radius of just 1,600 mm, making it suitable for sweeping in congested spaces not accessible to larger machines. High visibility from the driver’s seat and ergonomic, intuitive controls allow the operator to work safely in tight areas with full concentration on the job.

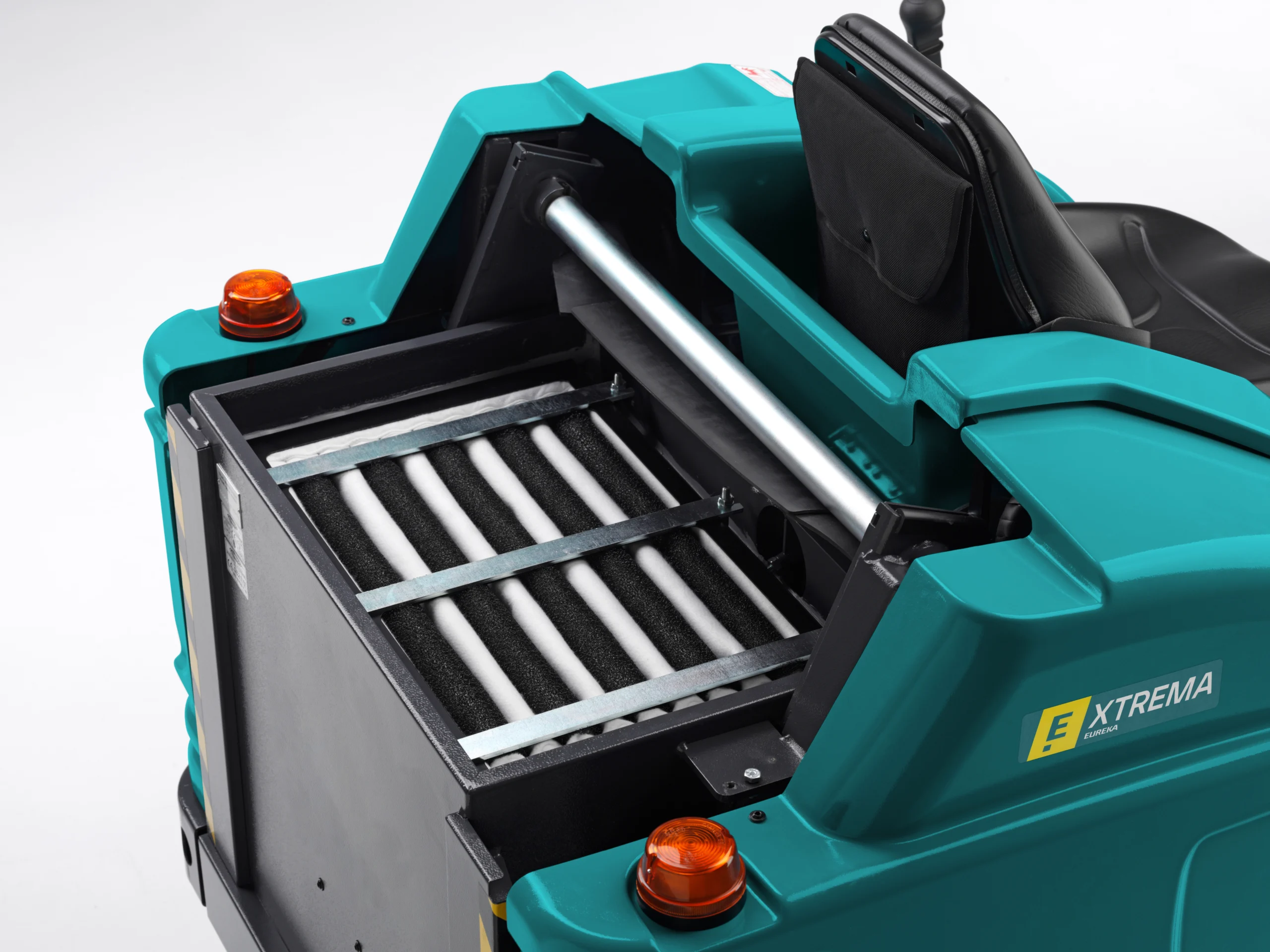

The MultiBristle® main brush with diversified bristles and SharkCap® antijam brush protection system guarantees effective cleaning on any floor type. The Multipocket® Filter with up to 99.9% filtration efficiency is washable, self cleaning, resistant to water and oil, and delivers clean air back into the environment. Brush pressure is adjustable from the driver’s seat via a control lever.
Key features
- 1,400 mm cleaning path (with two side brushes), 800 mm main brush width
- Up to 11,200 m²/h (EB) or 11,600 m²/h (HDK) hourly performance
- Compact 1,600 mm turning radius — highly maneuverable in congested spaces
- Works on gradients of up to 20%
- MultiBristle® main brush with diversified bristles and SharkCap® antijam brush protection
- Brush pressure adjustable from driver’s seat via control lever
- Tool free brush changes with quick change system
- Multipocket® Filter — 99.9% filtration efficiency, washable, self cleaning, automatic electric filter cleaning system
- Rear debris container — 150 L capacity, multilevel high dump, hydraulically controlled door
- Hydraulic dump height up to 1,350 mm — no manual lifting required
- EB version: battery powered, zero emissions, suitable for interior and exterior spaces
- HDK version: Kubota diesel engine, hydraulic traction, hopper lift, brushes and fan
- Vortex prefilter on engine air intake (HDK version)
- Double pedal traction control — forward and reverse

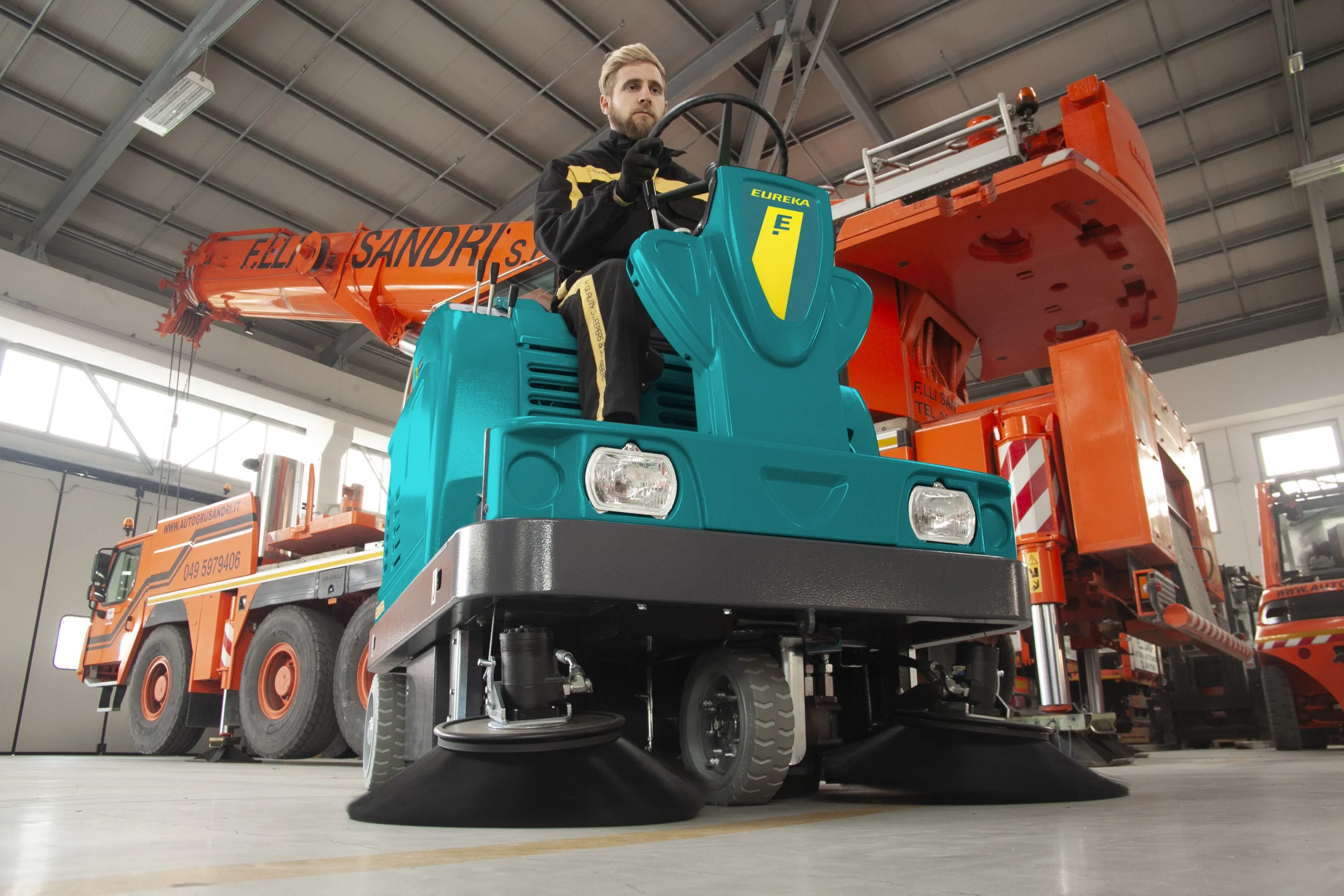

- Side brush shock absorption system
- Side panels open completely for easy access
- Protective steel bumpers
- Super elastic, non marking tyres
- Front headlights

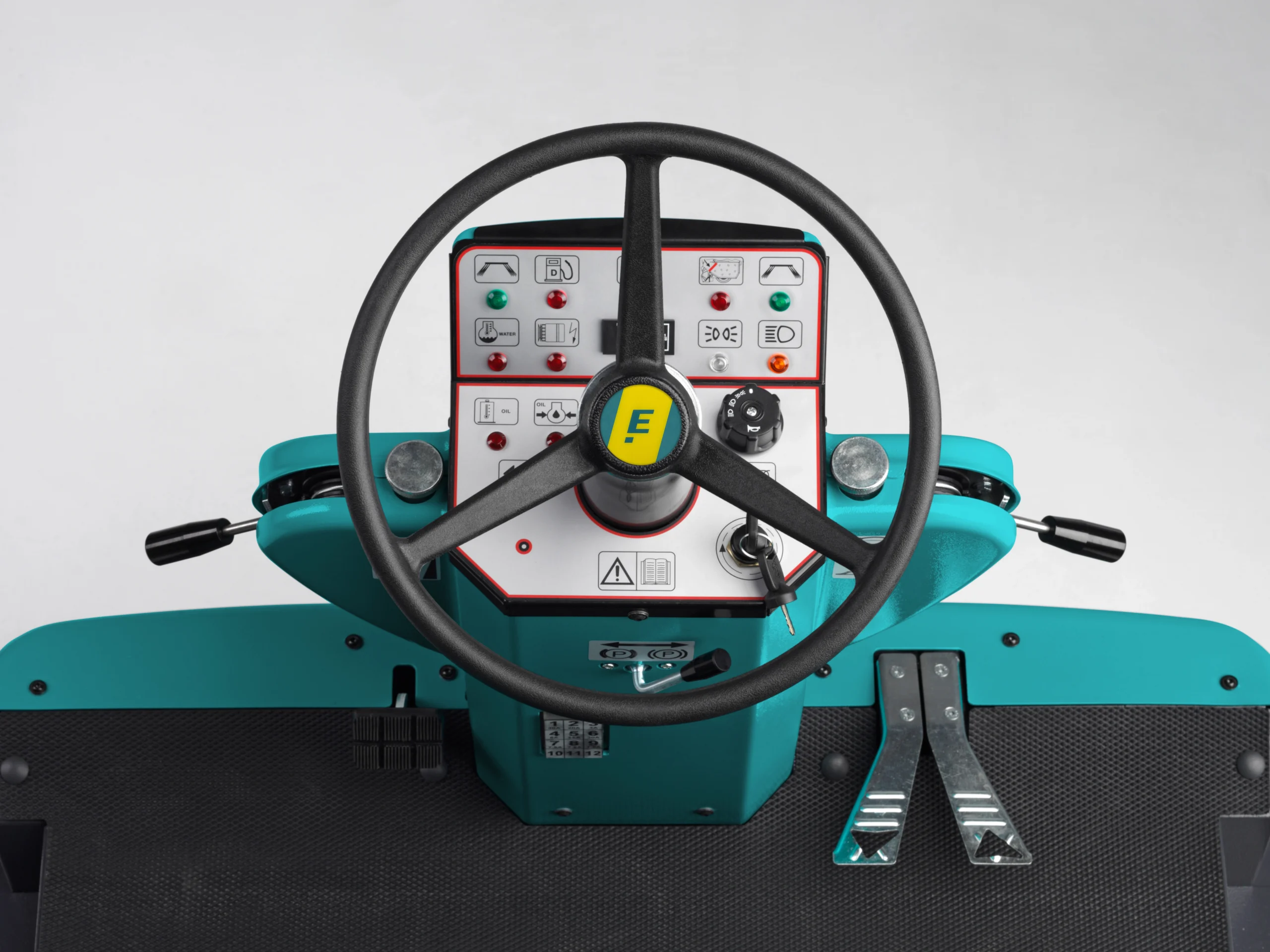

- Ergonomic and intuitive control panel — complete visibility from driver’s seat
Versions

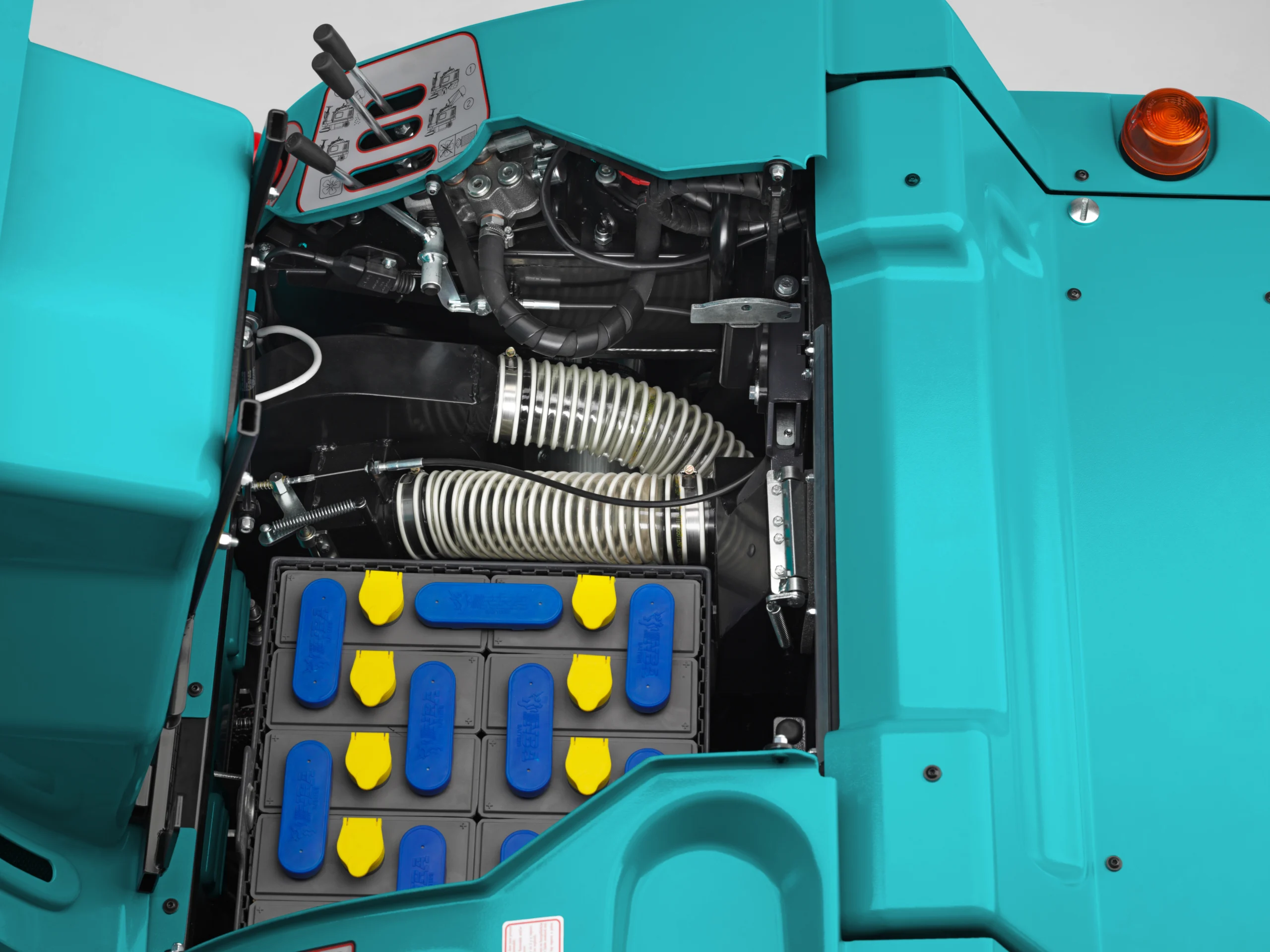

ASC Eureka M5 EB: 24V battery powered, 900 + 2,000W motors, electronic traction, 620 kg, zero emissions, interior and exterior use
ASC Eureka M5 HDK: 2-cylinder liquid cooled Kubota diesel engine 16.8 hp, hydraulic traction, 12V, 790 kg
Warranty
Every ASC Eureka M5 comes backed by the 4 year ASC Advantage Plus warranty on parts and labour.
Optional accessories
- Dirt container lift out baskets
- Carpet cleaning kit
- Hour meter
- Complete light kit
- Reverse beeper

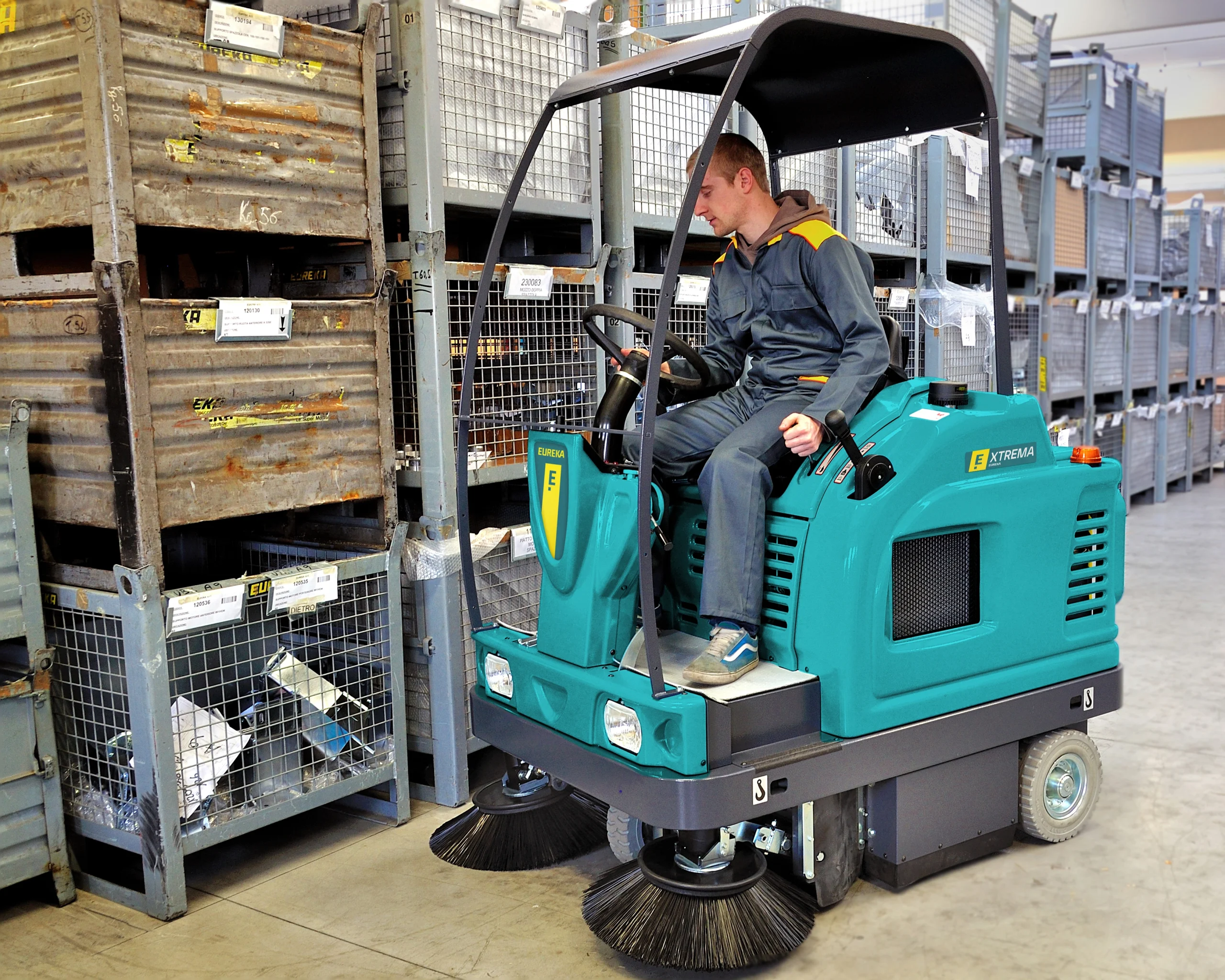

- Overhead guard
- Windshield in polycarbonate
- Class M bag filter
