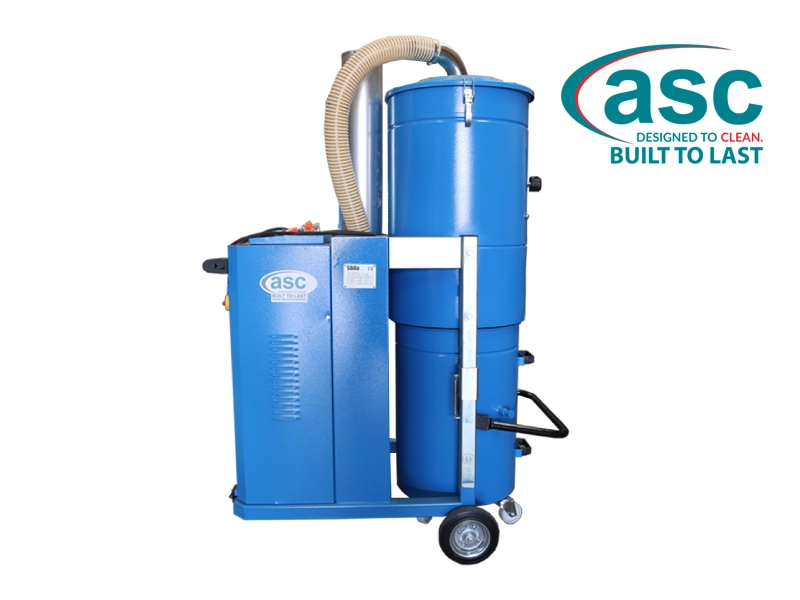

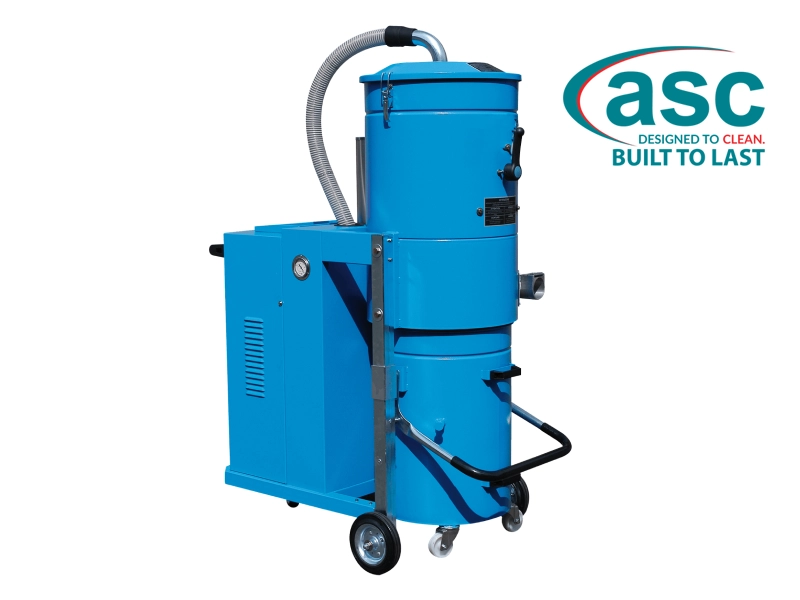

ASC DS3000 heavy duty industrial vacuum

ASC DS3000 heavy duty industrial vacuum

The ASC DS3000 is engineered for continuous-duty operation in manufacturing, mining, cement and processing industries. It effectively collects powdered material and heavy debris such as cement, plasterboard and fine dust. The DS3000 can be understood by any operator in seconds.

Category:
  • Additional Description
  • Technical Specifications
  • Video & Downloads

Clean-up made easy — heavy duty industrial vacuum for continuous-duty operation

The ASC DS3000 is engineered for continuous-duty operation in manufacturing, mining, cement and processing industries. It effectively collects powdered material and heavy debris such as cement, plasterboard and fine dust. The DS3000 can be understood by any operator in seconds.

The DS3000 is fitted with a side channel-turbine for maximum dust filtration, and comes with a choice of three different filter configurations for a range of applications. Multiple optional filters provide 99.993% dust filtration and asbestos/silica compliance.

To increase the DS3000’s hopper capacity and run time, the machine can be paired with an optional pre-separator unit. The machine is easy to transport due to its heavy-duty castor assembly.

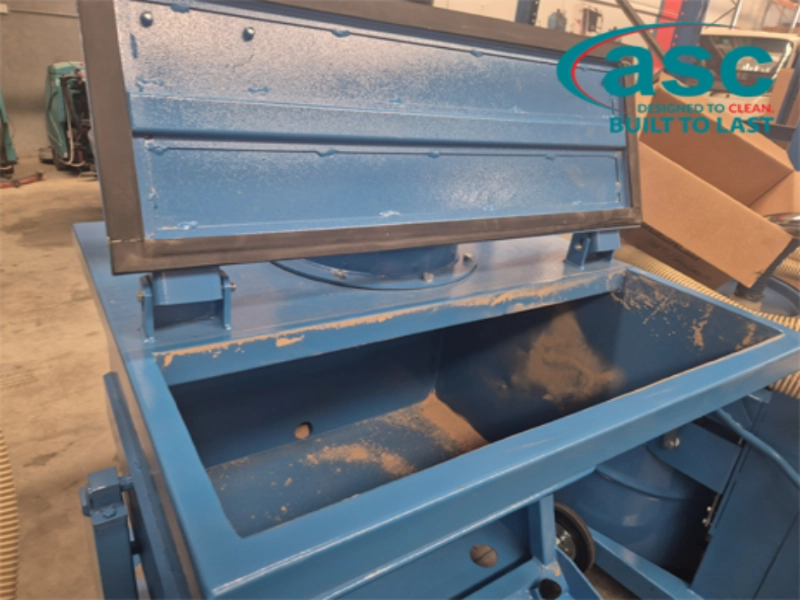

Optional pre-separator — 400L extra capacity with liquid suction and tipping function

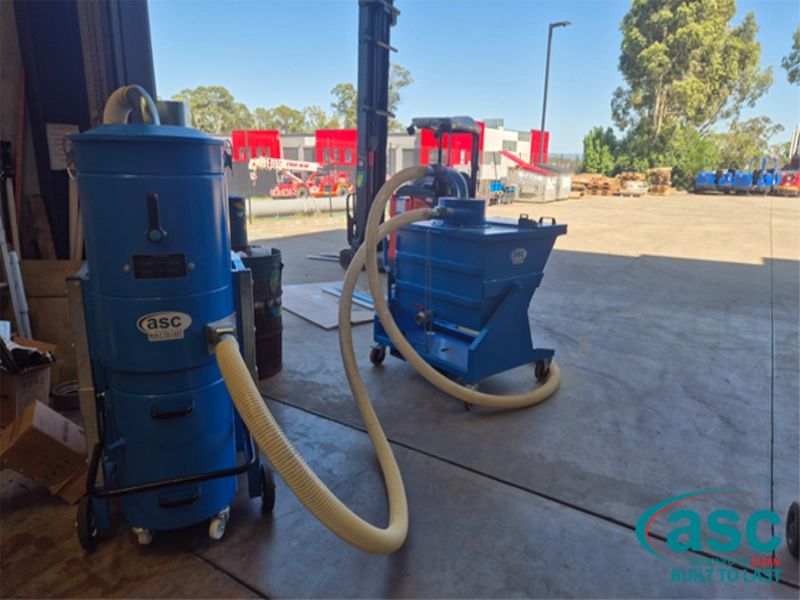

The ASC DS3000 with its optional mobile pre-separator allows for extra hopper capacity. The pre-separator gives an additional 400L hopper volume, with an optional liquid sucking function; perfect for large factory operations.

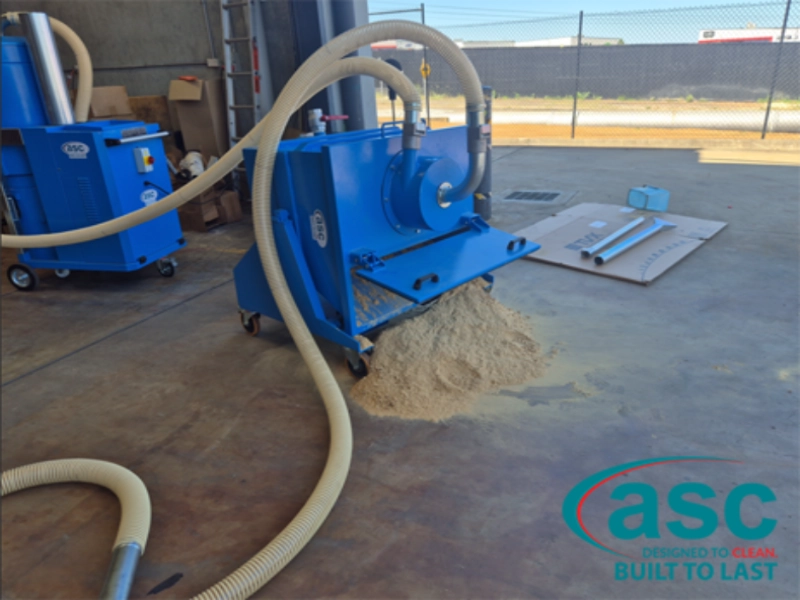

The pre-separator features a unique tipping function that eliminates back injuries and allows for simple emptying. It can also effectively be used for sucking up liquids and solids simultaneously with an optional liquid level sensor fitted.

Key features

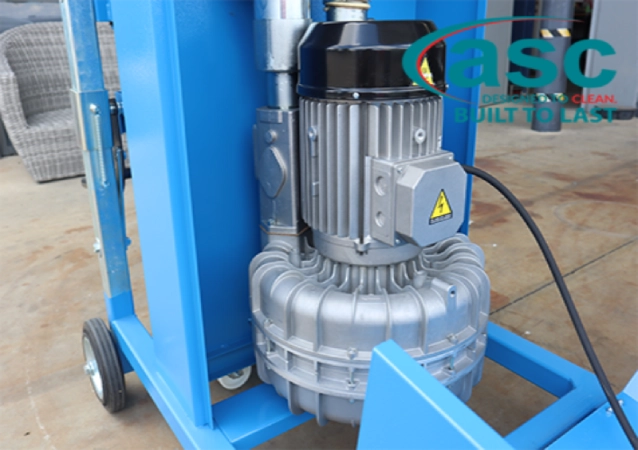

  • Side channel-turbine for maximum dust filtration

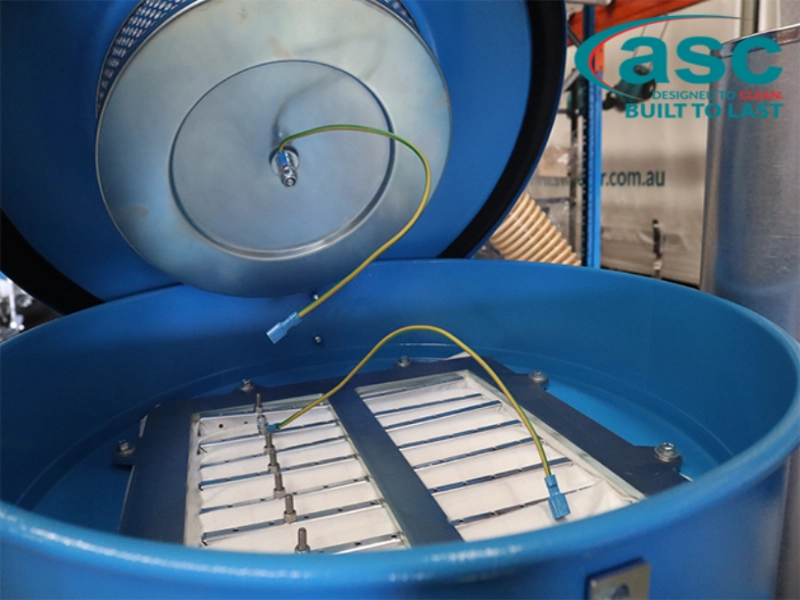

  • Multiple optional filters — 99.993% dust filtration, asbestos/silica compliant
  • Three different filter configurations for a range of applications
  • Flexible hose up to 6.6m
  • Multiple attachments for different cleaning tasks
  • Heavy-duty stainless steel frame
  • Large 100 L bin capacity

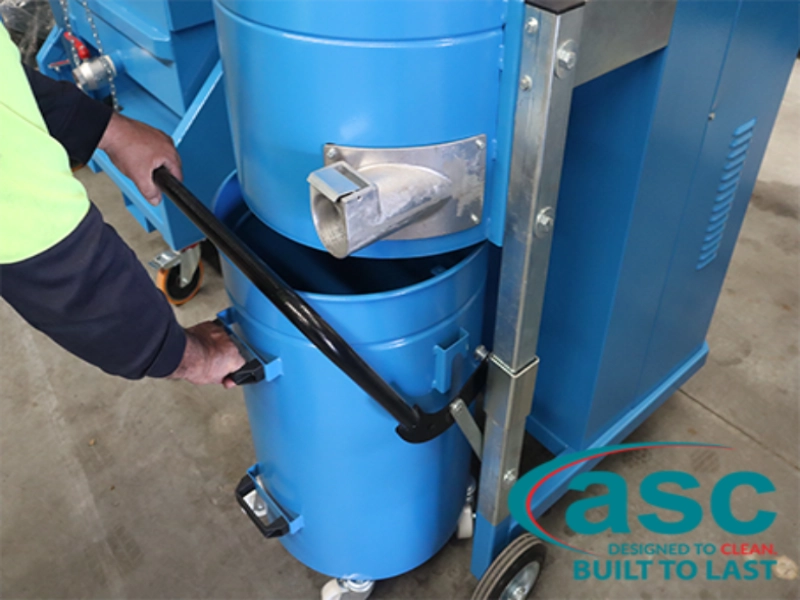

  • Simple bin removal
  • Compact and maneuverable
  • Runs on three phase power or compressed air
  • Easy transport — heavy-duty castor assembly
  • Dust compliant in all industries
  • Optional pre-separator — additional 400 L hopper, tipping function, optional liquid level sensor for liquid and solid collection

Versions

ASC DS3000 Three Phase Powered | ASC DS3000 Air Compressor Powered

ASC Satisfaction Guarantee

The ASC DS3000 comes backed by the ASC 100% Satisfaction Guarantee.

Technical specifications

Versions: Three Phase Powered | Air Compressor Powered

Applications: Brickyards, construction, cement plants, processing plants, food industry, smelters, mining and many more

Key specifications ASC DS3000:

  • Power: 4–5.5 kW
  • Suction inlet: 70 mm
  • Hose length: 6.6 m
  • Maximum airflow: 600–700 m³/h
  • Maximum vacuum: 5,000 DaPa
  • Waste capacity: 100 L
  • Outlet (phase): Single / Three
  • Dimensions (W×L×H): 1,200×820×1,800 mm
  • Weight: 200 kg

Optional Pre-Separator:

  • Suction inlet: 70 mm
  • Hose length: 6.6 m
  • Maximum vacuum: 5,000 DaPa
  • Waste capacity: 400 L
  • Dimensions (W×L×H): 1,120×1,265×1,435 mm
  • Weight: 630 kg

Other Products

Frequently asked questions

What industries is the ASC DS3000 suited for?

The DS3000 is engineered for continuous-duty operation in manufacturing, mining, cement, processing plants, food industry, smelters, brickyards and construction. It collects cement, plasterboard and fine dust.

How effective is the dust filtration on the DS3000?

The DS3000 offers multiple optional filters with 99.993% dust filtration and asbestos/silica compliance. It comes with a choice of three different filter configurations and a side channel-turbine for maximum suction performance.

What is the optional pre-separator?

The optional mobile pre-separator gives the DS3000 an additional 400L hopper volume with a unique tipping function for easy emptying without back strain. It can also be used for simultaneous liquid and solid collection with an optional liquid level sensor.

What power options are available for the DS3000?

The DS3000 is available in two versions: Three Phase Powered and Air Compressor Powered, giving flexibility for deployment across different site configurations.

What is the hose length on the DS3000?

The DS3000 is fitted with a flexible hose up to 6.6 m with multiple attachments for different cleaning tasks.

Is the ASC DS3000 available for hire?

Yes — contact our team to discuss industrial vacuum hire options for short term or project based requirements.

Clean-up made easy. 99.993% filtration. 5,000 DaPa. 100L + optional 400L pre-separator.

The ASC DS3000 is a heavy duty industrial vacuum for continuous-duty operation — side channel-turbine suction, asbestos/silica compliant filtration, three phase or compressed air power, and an optional pre-separator for 400L extra capacity with tipping function. Talk to our team about the right configuration for your site, or request a quote today.
